CUSTOM PARTS / ENGINEERING & MACHINING

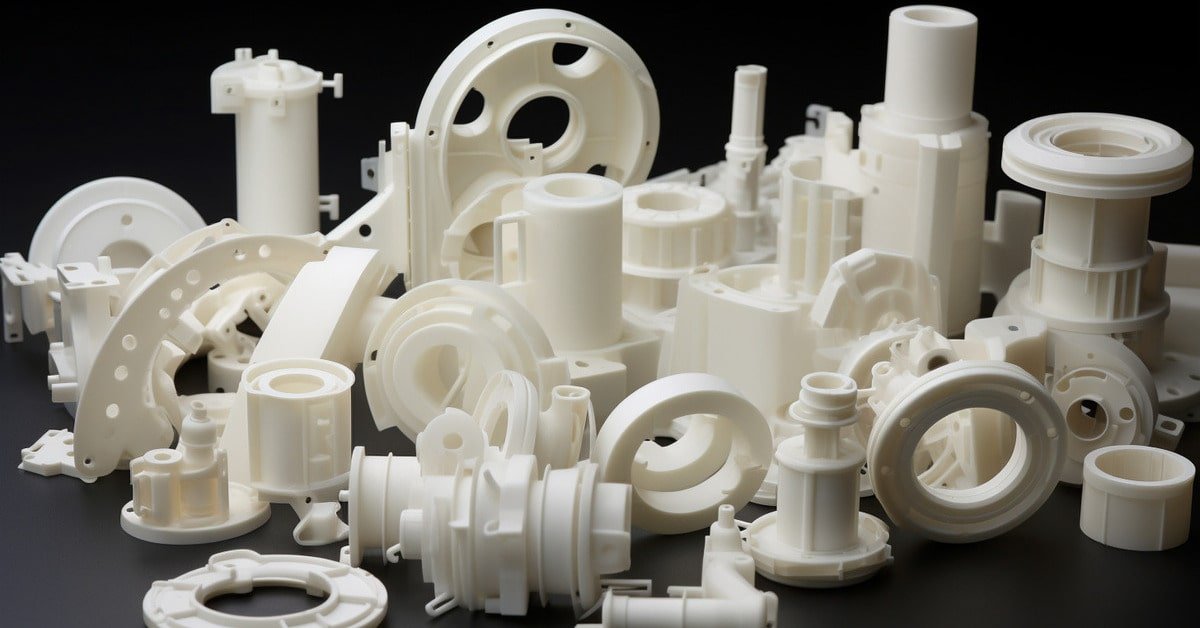

PTFE CNC Machining for Seals & Compliant Components
A PTFE ring can look accurate in the chuck and change after release. We review support, section thickness and measurement force around the sealing or insulating function of your component.
A thin ring deforms under clampingFeature-specific process planning
Measurement force changes the readingDefined inspection condition
A seal changes under service loadFirst-off and finishing scope
Control the released part, not the clamped shape
Our review links the feature that matters in your assembly to the proposed setup, machining sequence and acceptance check.
| Your part challenge | Our proposed approach | How to verify the result |
|---|---|---|
| A thin ring deforms under clamping | Review broad support and low-distortion holding for the section. | Inspect in the agreed released state and support condition. |
| Measurement force changes the reading | Choose a measurement method suited to the compliant feature. | State contact force or the agreed method where it affects acceptance. |
| A seal changes under service load | Review mating geometry, load and time-dependent behavior. | Separate dimensional acceptance from functional seal validation. |
ILLUSTRATIVE ENGINEERING BRIEF
A PTFE sealing ring with a defined free-state inspection
Illustrative RFQ: 100 rings, Ø40 mm outside diameter, Ø30 mm inside diameter and 3 mm axial thickness. The buyer requires an agreed free-state dimensional report.
100 pcsExample batch
Ø40 / Ø30 mmExample OD / ID
3 mmExample axial thickness
These numbers describe an example customer requirement, not a completed customer project or a guaranteed machining limit. Final feasibility is confirmed from the drawing.
The engineering challenge
Workholding or measurement pressure can reshape the ring. A dimensional pass does not establish sealing life under the customer's load and temperature.
The acceptance plan
Proposed acceptance: released OD, ID and thickness with stated measurement conditions. Seal testing uses the customer's specified groove, medium, pressure and temperature.
A proposed machining route
- Review the mating groove, grade, load and requested inspection state.
- Support the ring during turning with a holding method matched to the thin section.
- Finish related diameters and faces, then release and deburr without forcing the geometry.
- Inspect after an agreed stabilization period using the selected measurement method; agree functional testing separately.
What our engineering review
brings to your quotation
Plan compliant workholding
Avoid treating the ring as a rigid metal component.
Specify the measurement method
Resolve support, force and stabilization conditions.
Separate fit from service validation
Agree seal testing beyond the machining report.
Material selection
supports the part.
Confirm the grade after the functional requirements are clear.
Specify virgin or the exact filled PTFE grade. Load, medium, temperature and time in service are essential to the material and fit decision.
View PTFE / Teflon grade and specification notes
| Material option | Selection context | What to confirm |
|---|---|---|
| Virgin PTFE | Specified chemical or insulating functions | Confirm service environment and grade. |
| Filled PTFE | Modified wear or load behavior | Specify filler type and content; review compatibility. |
| Customer-specified grade | Defined service requirements | Confirm the supplier data and permitted alternatives. |
Material reference: Material or fabrication reference ↗.
Questions about your machining project
How should a thin PTFE ring be inspected?
Agree released state, support, temperature and measurement method. Contact force can matter for compliant features.
Can a tight dimensional tolerance guarantee sealing life?
No. Service load, time, medium, temperature and mating geometry also matter and need a defined validation scope.
Can filled PTFE replace virgin PTFE?
Only after compatibility, load, wear and electrical requirements are reviewed and the substitution is approved.
Are the example parameters a guaranteed capability?
The example is a customer brief used to explain the proposed engineering route. Actual limits, cost and timing are confirmed from the complete drawing.
What should I include for this process review?
Send the CAD and drawing revision, exact grade, quantity and the critical requirements discussed above. Include mating-part details and required inspection records.
ENGINEER YOUR NEXT PART
Get a quote built around
your part requirements.
Send the drawing and tell us which feature controls assembly, sealing or motion. Our review connects that requirement to a proposed route and inspection scope.
- CAD model and 2D drawing revision
- Mating-part details and the fit problem to solve
- Material grade and accepted alternatives
- Quantity and requested delivery date
- Critical requirement: A thin ring deforms under clamping
- Critical requirement: Measurement force changes the reading
- Critical requirement: A seal changes under service load
- Inspection and functional validation scope
