Develop detailed component geometry
Review pockets, thin sections, interfaces and multi-face features with the machining route in view.
COMPONENTS / PROTOTYPES / GROUND-TEST FIXTURES
Custom Parts for
Aerospace Projects
Develop drawing-defined brackets, housings, interfaces and ground-test fixtures with custom machining and sheet metal support. Connect complex geometry with the materials and inspection records your project calls for.
From your CAD Custom component manufactureAcross processes Machining, sheet metal & finishing
WHY PROLEANMFG
Bring complex geometry
into a controlled build.
Connect the component model, drawing revision and inspection priorities from the first inquiry.
Keep material and geometry connected
Bring the specified grade, condition and finish into the same review as critical dimensions.
Make inspection part of sourcing
Include the measurements, material records and first-article documents needed for your acceptance process.
APPLICATIONS & COMPONENTS
Components for development.
Hardware for verification.
Match the manufacturing scope to the part’s role in the project.
Brackets & housings
Drawing-defined brackets, covers, enclosures and supporting structures.
HOW IT SUPPORTS THE ASSEMBLY
Mounting datums, pockets and controlled walls connect geometry to the surrounding assembly.
Precision interfaces
Adapters, spacers, bushings and interface parts with related machined features.
HOW IT SUPPORTS THE ASSEMBLY
Locating faces, fits and surface requirements support the specified component relationships.
Ground-test & assembly fixtures
Locating, holding and inspection fixtures made to your test or assembly brief.
HOW IT SUPPORTS THE ASSEMBLY
Contact points, replaceable features and locating schemes support the customer’s setup.
MANUFACTURING SUPPORT
The process behind
the component.
Connect geometry, material and finish to the route that makes the part.

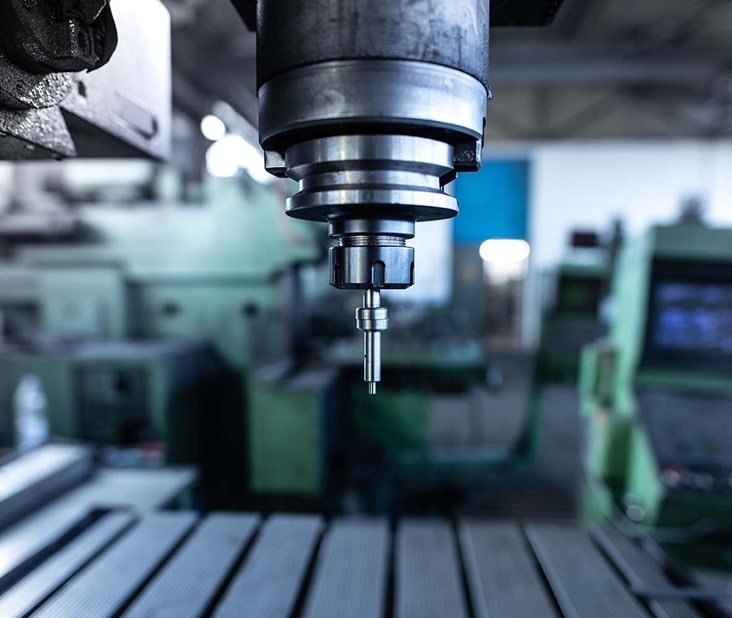

CNC machining
Review milling, turning and multi-axis access for pockets, interfaces and features on multiple faces.

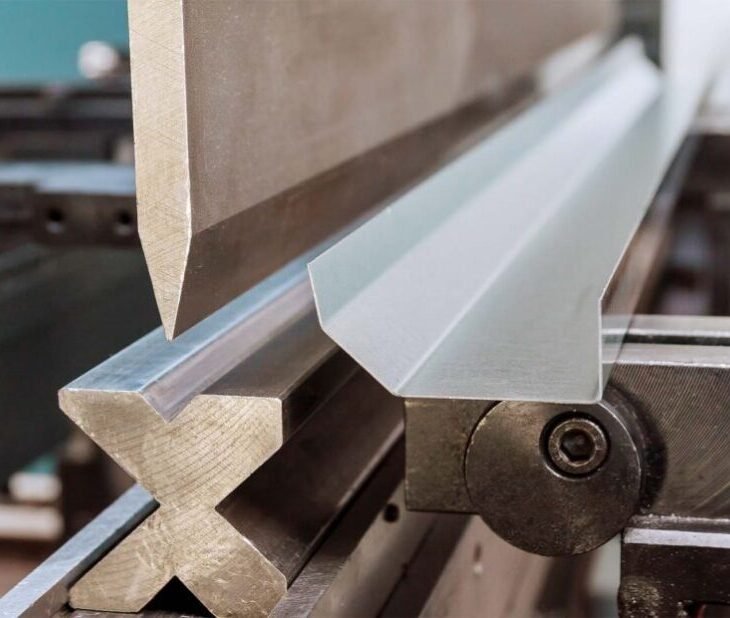

Explore CNC machining ↗Sheet metal fabrication
Produce drawing-defined panels, covers and brackets with the required forming, hardware and finish.
Explore sheet metal fabrication ↗FROM DESIGN TO BUILD
Keep the part and its
delivery records connected.
A component order includes the information needed to accept it.
- 01
Controlled revision
Keep CAD, drawing and customer specifications on the same manufacturing baseline.
A defined part configuration
- 02
Material & finish
Connect grade, condition, finish specification and requested records to the part.
A complete component specification
- 03
Inspection deliverables
Include the characteristic list, report format and sample approval steps in the inquiry.
Project-specific acceptance evidence
MATERIALS & FINISHES
Match the material
to the component’s job.
Explore the starting points below, then select the exact grade and condition for your design.
| Material family | Component examples | Selection considerations |
|---|---|---|
| Aluminum alloys | Brackets, housings and lightweight component geometry. | Exact grade and condition, geometry and finish. |
| Titanium alloys | Components with defined material requirements. | Specification, stock availability and machining scope. |
| Stainless & specialty alloys | Interfaces and environment-specific components. | Grade, condition, feature access and required records. |
| Engineering plastics | Insulating, guiding and specified fixture components. | Grade, operating conditions and application requirements. |

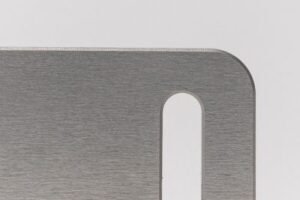

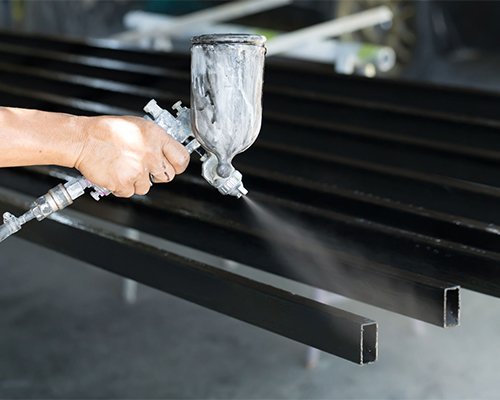

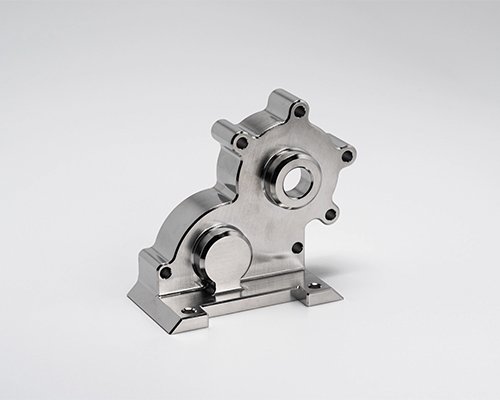

Bring the finish
into the part design.
Specify controlled faces and dimensional allowances alongside the finish. Include special-process and certification requirements for project review.
Explore surface finishing ↗
QUALITY & INSPECTION
Give critical features
the attention they need.
Focus inspection on the datum structure, critical feature relationships and surface requirements on the controlled drawing. Include any first-article format and material documentation in the quotation request.
- Drawing-based dimensional inspection
- Material and finish requirements in the component review
- Project-specific reporting agreed with your order
Your questions.
Practical answers.
Can you quote ground-test or assembly fixtures?
Share the controlled drawing, mating information, locating scheme and service conditions. Include the features and records needed to verify the fixture.
Can I request first-article inspection records?
Provide the required format, characteristic list and approval process. The supported records and inspection scope need to be agreed for the order.
How are certification and special-process requirements handled?
Include the precise requirements and certificates needed at inquiry. The supplier, process and documentation scope must be checked against those requirements before order placement.
Does an aerospace application listing establish flight suitability?
Qualification and suitability depend on the specific component, intended use and customer requirements. They are reviewed separately from the availability of a manufacturing process.
YOUR NEXT BUILD STARTS HERE
Turn your component
definition into a quote.
Send the controlled part files, material and quantity. Include the inspection and documentation requirements your project needs.
