DESIGN VALIDATION
Evaluate molded samples
Check assembly, handling and selected performance requirements using the agreed injection-grade resin. Include test conditions and critical interfaces in the brief.
PROTOTYPE MOLDS. PARTS FOR YOUR NEXT STEP.
Rapid tooling
services.
Move from a reviewed design to injection-molded samples. Explore prototype and bridge tooling around your part resin, design stage and production quantities, with DFM, trial and inspection requirements defined in your quote.
Evaluate the intended resinReview molded parts in your assembly
Plan around your quantitiesCompare prototype and bridge tooling
Build on a clear specificationDFM, trials and part acceptance
PROTOTYPE & BRIDGE TOOLING
Bring the molding process
into development.
Rapid tooling creates an injection mold for prototype parts or a defined production run. It is worth considering when your next decision depends on the specified resin, molded geometry or repeat-part requirements.
PRODUCT DEVELOPMENT
Review the design before scaling
Use DFM and trial samples to assess draft, parting lines, gate marks and ejection. Resolve issues that matter to the product before the next tooling investment.
BRIDGE PRODUCTION
Plan the first production quantities
Compare tooling and part costs across your initial order and expected repeat batches. Match the mold specification to the resin, quantity and revision risk.
CHOOSE THE TOOLING STRATEGY
The right mold
for the next milestone.
Tool material, cavity arrangement and insert design influence cost, maintenance and future changes. Select them together rather than choosing by an estimated shot count alone.

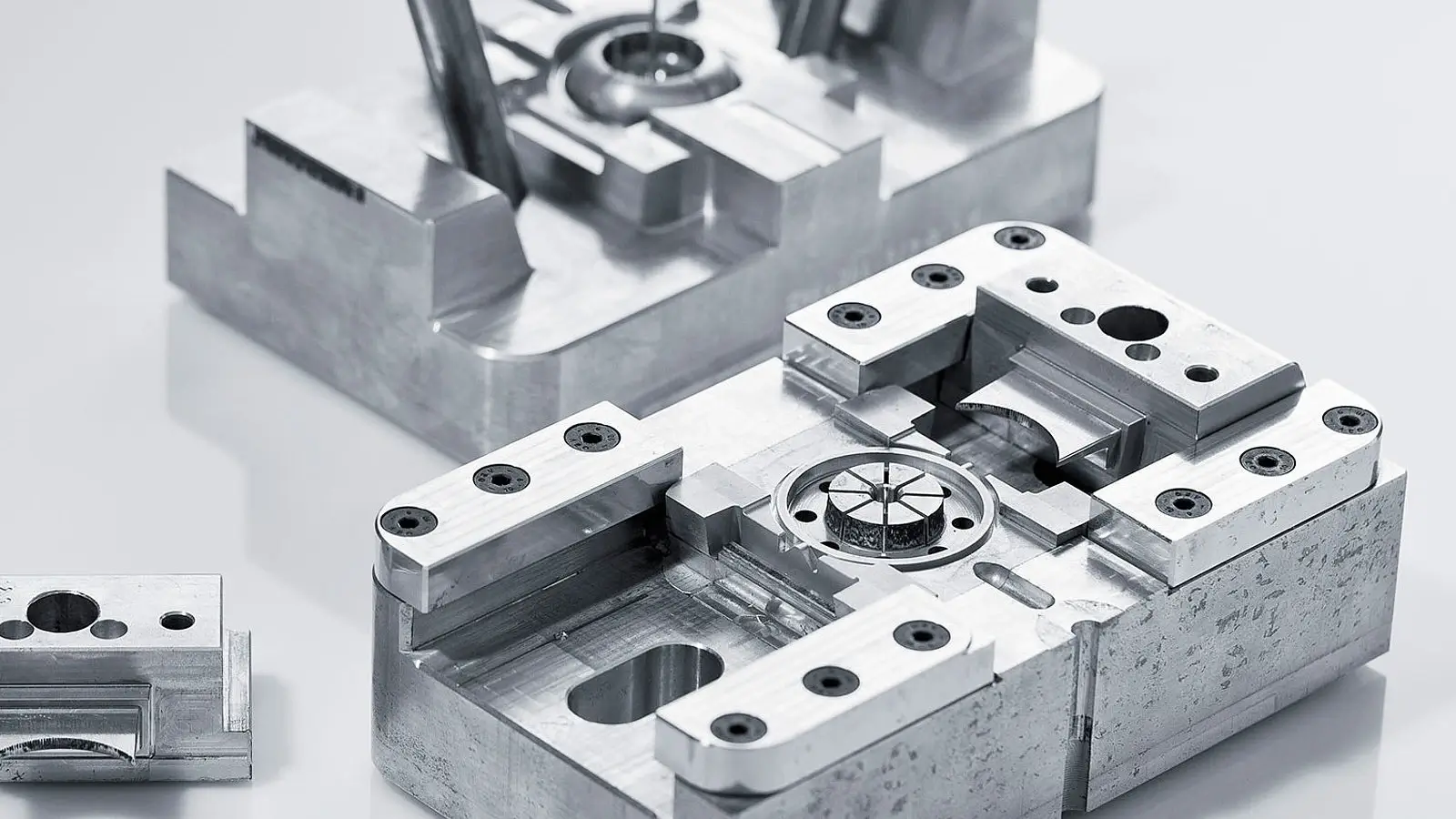

ALUMINUM TOOLING
A route for prototype molds
Review aluminum tooling for a defined prototype or short-run requirement. Geometry, part finish, resin wear and expected repeat orders determine whether it is suitable.
Include in the brief: trial quantity, expected changes, resin reinforcement and target appearance.

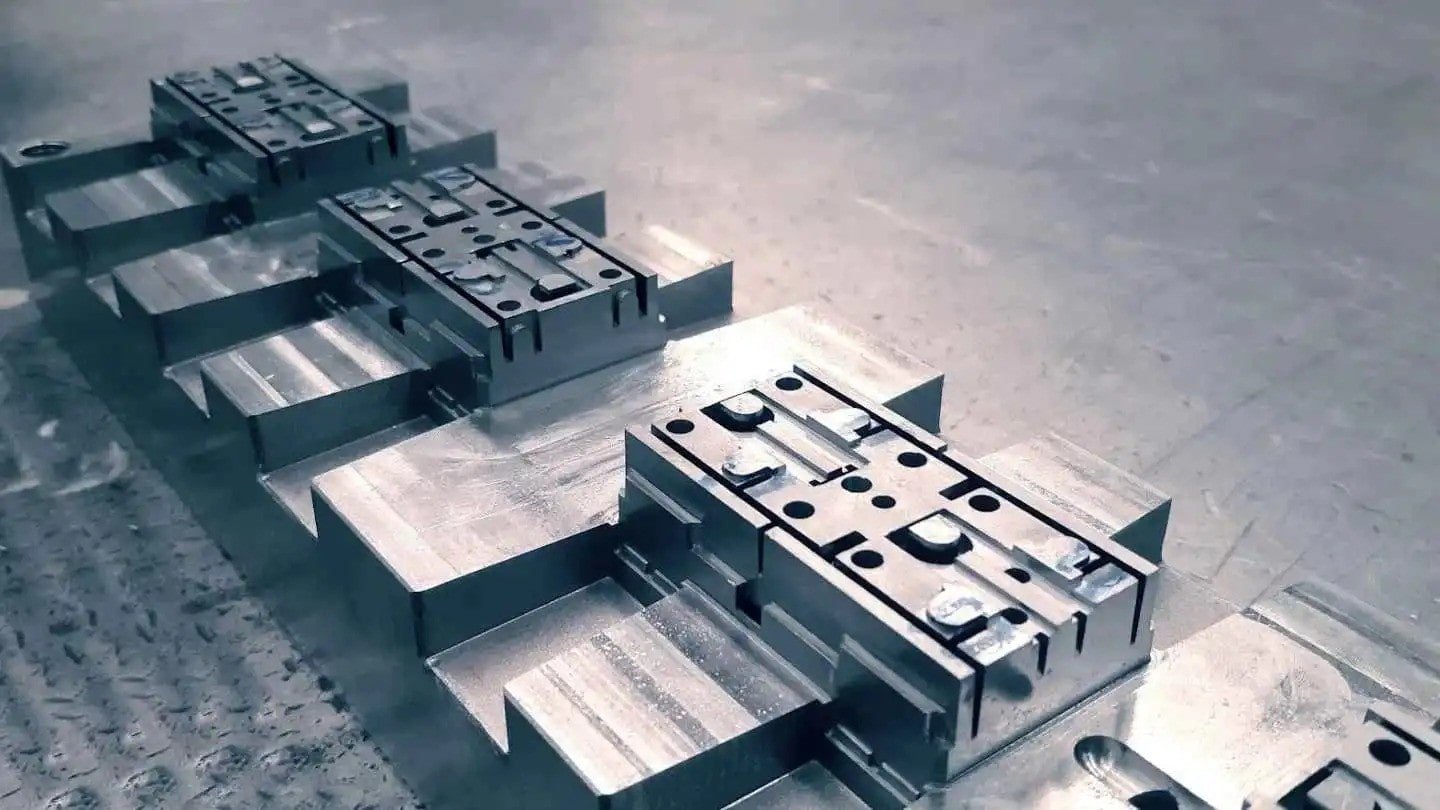

PRE-HARDENED STEEL
A route for repeat production
Compare a steel tooling specification when wear resistance, repeat batches or resin abrasiveness are important. The grade and construction should suit the actual molding conditions.
Include in the brief: total quantity plan, resin grade, critical features and maintenance expectations.

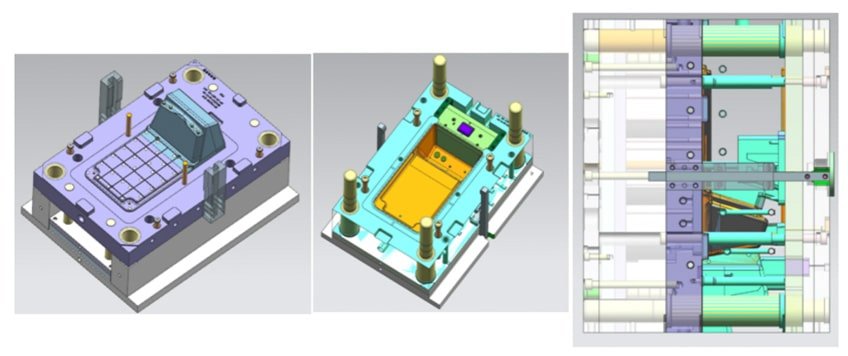

INSERT STRATEGY
Plan for the features that may change
Discuss replaceable inserts for likely design revisions or local wear areas. Feasibility depends on sealing, alignment, cooling and the geometry surrounding the insert.
Include in the brief: alternative versions, likely revisions and which features should remain common.
Final tool grade, cavity count, construction and expected service life are agreed in the quotation. A prototype mold and a bridge-production mold can require different specifications.
TOOL MATERIALS & PART RESINS
Choose the tool.
Specify the molded part.
The mold material and the part resin do different jobs. Share the exact part grade or required properties so the tooling proposal can account for shrinkage, processing conditions, reinforcement and finish.
| Selection | What to specify | What it influences |
|---|---|---|
| Tool alloy / steel grade | Aluminum or pre-hardened steel; exact grade in the proposal | Machining, wear, surface preparation, maintenance and revisions |
| Injection-grade thermoplastic | Supplier and grade, color, additives and reinforcement | Shrinkage, drying, molding conditions and part behavior |
| Cosmetic requirement | Visible faces, texture or polish reference and permitted marks | Cavity finish, draft, release and sample approval |
| Specialized resin or elastomer | Exact chemistry, properties and processing requirements | Separate review of process compatibility and available supply scope |
Validate against the actual test.
A molded sample in the intended grade can help evaluate the design under specified conditions. Its result still depends on molding parameters, geometry and conditioning. Include load, temperature, fluids and test duration where relevant.
DESIGN FOR MANUFACTURING
Resolve the details
before cutting the mold.
DFM connects the part design with how resin flows, cools and releases. Use the review to identify changes, cosmetic tradeoffs and critical requirements before approving the tool design.
WALLS & RIBS
Manage transitions and local thickness
Review thick sections, ribs and bosses for sink and distortion concerns. Wall and rib recommendations depend on the chosen resin and part geometry.
DRAFT & EJECTION
Help the part release
Assess draft alongside texture, undercuts and ejection surfaces. Mark where ejector impressions are acceptable and where assembly or appearance must be protected.
GATES & PARTING LINES
Plan the visible process marks
Identify show faces, sealing areas and load-sensitive features. Review gate location, parting lines and weld-line concerns against those priorities.
UNDERCUTS & INSERTS
Balance geometry and mold complexity
Review side actions, removable inserts and access. Include alternative designs where simplifying the part may reduce tooling complexity.
FROM CAD TO TRIAL PARTS
Review. Build.
Sample. Refine.
A clear approval sequence keeps the tool, trial samples and repeat production aligned. Define the deliverables and review milestones at quotation stage.
Share the project
Send CAD, the drawing revision, resin grade and quantity breaks. Add cosmetic references, critical dimensions and your target date.
Approve the tooling plan
Review DFM, tool material, cavities, inserts, finish and trial scope. Confirm the approved design before mold manufacture.
Review T1 samples
Assess the first trial parts against the drawing and appearance references. Record issues and agree any tooling or process changes.
Accept and plan the next run
Confirm the revised samples and agreed inspection record. Define the release conditions for subsequent molded parts.
T1 is the first sample review.
Trial results may lead to adjustment or another sampling round. Agree included trials, revision responsibilities and approval criteria in advance. Confirm accepted-part delivery separately from the tool-build milestone.
DELIVERABLES & QUALITY
Know what arrives.
Know what is accepted.
A tooling project can include the mold, trial samples and subsequent part orders. State each deliverable separately so the quote and inspection plan match your purchase.
| Deliverable | Agree in the quotation | Review for acceptance |
|---|---|---|
| Mold tooling | Construction, cavities, inserts, press interface and documentation | Approved tool specification and agreed inspection records |
| Trial samples | Resin grade, quantity, trial records and inspection scope | Critical dimensions, assembly requirements and cosmetic references |
| Repeat molded parts | Order quantities, packing, batch inspection and schedule | Approved drawing revision, sample reference and batch requirements |

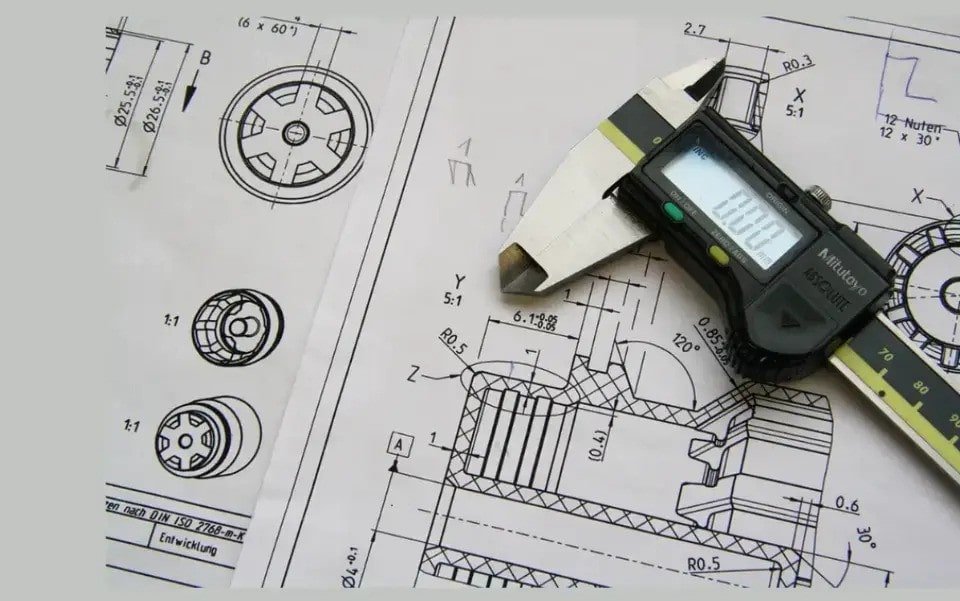

Specify tool dimensions separately from molded-part tolerances. Resin shrinkage, cooling and warpage affect the molded result. Include datums, measurement conditions and any required dimensional report or functional test.
PLAN FOR REPEAT ORDERS
Think beyond
the first trial.
Ownership, storage and maintenance affect how a tool serves future orders. Include these commercial requirements with the engineering brief.
Ownership & transfer
Confirm when ownership transfers, whether the mold will be exported or retained, and which drawings or interfaces are included for another molding location.
Service life & upkeep
Agree the expected shot range and its resin, operating and maintenance conditions. Define wear exclusions, repair responsibility and replacement terms.
Storage & reorders
Record storage duration, preservation, retrieval terms and restart checks. Keep resin specifications and drawing revisions current for the next batch.
RAPID TOOLING FAQS
Before your
next molded part.
When should I choose rapid tooling?
Consider it when evaluation depends on an injection-molding resin or molding-related features, or when repeated parts justify a tool investment. Include the design stage and expected quantities so prototype and bridge-tooling routes can be compared.
Should I choose aluminum or steel tooling?
The choice depends on geometry, resin abrasiveness, surface requirements, expected quantities and design changes. Ask for the proposed grade and construction with the reasons behind the selection. Neither material provides a universal tool-life guarantee.
What affects rapid tooling cost?
Part geometry, mold size, cavities, side actions, inserts, finish and tool material affect tooling cost. Trials, design revisions, inspection and subsequent molded parts should be scoped separately. Send quantity breaks to compare the total project cost.
How long does a rapid tooling project take?
The schedule depends on design approval, material procurement, mold complexity, trials and any corrections. Confirm DFM approval, tool readiness, sampling, acceptance and shipping as separate milestones in the quotation.
What happens if the T1 samples need changes?
Review the issue against the approved drawing, DFM record and cosmetic references. Agree whether the next step is a process adjustment, mold correction or design revision, together with cost and resampling requirements.
Who owns the mold, and can it be transferred?
Ownership, storage and transfer terms are defined in the project agreement. If you need an export mold, state the receiving press interface, documentation and transfer requirements before the tool is designed.
Should I print or cast samples before making a mold?
That depends on the decision you need to make. 3D printing can support early geometry and assembly reviews, while vacuum casting can support repeated cosmetic samples. Tooling is a separate choice when the resin or molding process matters.
What should I send for a tooling quotation?
Send 3D CAD, a revision-controlled drawing, resin grade, initial and repeat quantities, critical dimensions, visible surfaces, reference finishes and a target date. Add ownership, storage or mold-transfer requirements.
