Advanced CNC machining is a highly versatile cutting-edge technology commonly used in precision industries such as aerospace. It is used in manufacturing high-precision parts that require tight tolerances.
It is superior to most machining processes, and with proper expertise, it allows higher-quality part production.
Advanced CNC Machining has changed the course of the modern manufacturing industry by simplifying the process for manufacturers to produce high-precision parts.
This article compares advanced CNC machining and standard CNC machining, details advanced cutting techniques and modern CNC machines, while highlighting the advantages of advanced CNC machining.
Advanced CNC Machine VS Standard CNC

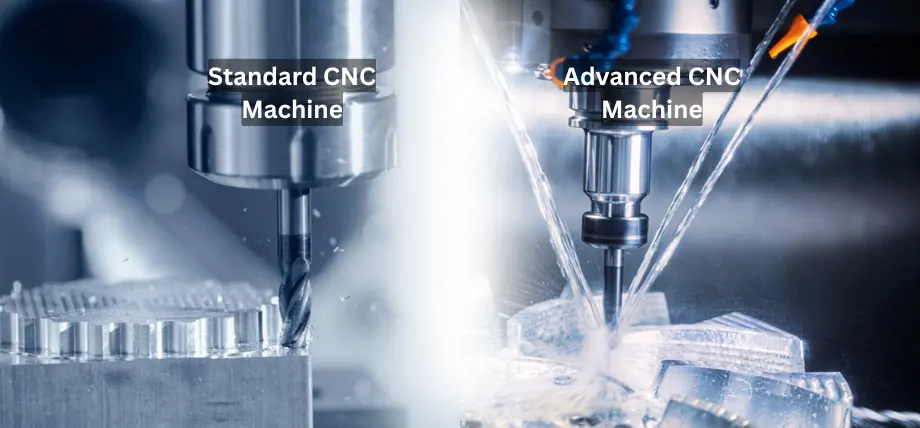

Standard CNC milling vs advanced CNC milling
Advanced CNC machining uses specialized equipment and automation procedures that improve the machining capabilities compared to standard CNC machining.
Advanced CNC machining uses the modern 5-axis machining technology that increases versatility by enabling multi-angle manipulation. This improves the production time by removing the old multi-setup process.
Standard CNC machines are based on 2D and 3D axes, limiting versatility and generally suitable for high-volume parts production with simple geometries.
Advanced CNC machining has higher precision and is better at achieving tight tolerances. It can easily machine up to 0.001 inches. This helps in manufacturing complex geometries with crevices and tight corners.
Standard CNC machines are only capable of 0.001 inches in precision and are limited to simple geometry.
The Advanced CNC machines have real-time monitoring capabilities and automatic tool changers, which adjust and streamline the machining process to reduce lead time. This means that there are minimal flaws and human intervention during production.
The Makino 5-axis machine is an example of an advanced CNC machine that can perform multiple operations in a single cycle. Standard CNC machines require multiple setups for such jobs.
Standard CNC machines are better suited for simple, high-volume part production. In contrast, advanced CNC systems are for parts with complex designs with strict industry requirements, such as the aerospace and automotive industries.
.
| Feature | Advanced CNC Machining | Standard CNC Machining |
| Axis Capability | 5-axis or higher, simultaneous multi-angle machining | 2D/3D axes, limited to simpler geometries |
| Precision | Tolerances up to ±0.0001 inches | Tolerances up to ±0.001 inches |
| Setup Time | Single setup for complex parts | Multiple setups required |
| Automation | Robotic integration, real-time monitoring | Limited or no automation |
| Applications | Aerospace, medical, complex prototypes | High-volume, simpler parts |
| Cycle Time | Reduced due to multitasking | Longer due to sequential operations |
Key Processes in Advanced Machining
Advanced CNC machining uses cutting-edge technology to achieve high precision and tight tolerances. These efficient methods and techniques maintain consistent quality and timely production. Some advanced techniques used in modern CNC machining are mentioned below:
High-Speed Machining (HSM)

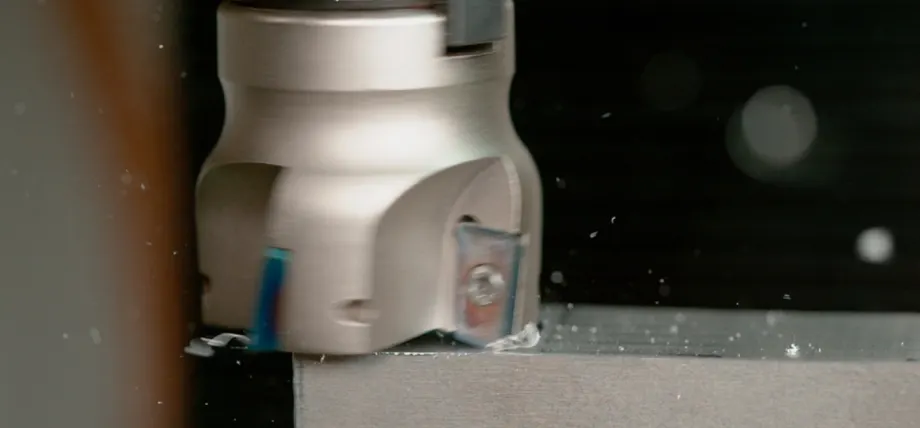

High speed milling
High-speed machining is highly precise. It uses a high-speed rotating spindle that removes excess material to form a component.
It has generated less heat than other techniques and is used for aluminum machining since it can bypass the problem of aluminum’s high conductivity.
For optimal performance, HSM requires careful attention to feed rates and tool wear during machining.
The Makino MAG series machine is an excellent one with a spindle speed up to 33000 RPM for enhanced precision and efficiency.
Additionally, high-speed machining produces high-quality surface finishes. This removes the need for post-processing.
Cryogenic Machining
Cryogenic machining is an advanced CNC machining technique that uses liquid nitrogen or carbon dioxide to cool the material and cutting tools during machining.
Cutting tools and drills can reach extremely high temperatures when machining materials such as titanium and Inconel. The high temperature reduces tool life.
A cooling system delivers coolant to the cutting tool to prevent wear and regulate temperature.
The process is used in the aerospace and energy industries to improve cutting speed and reduce component processing time.
Laser-Assisted Machining (LAM)

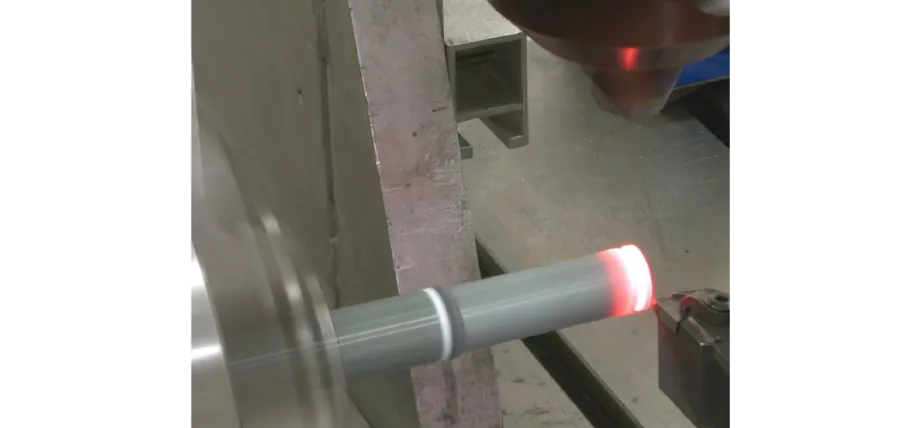

Laser assisted machining
Laser Assist Machining uses a laser to heat the material in the cutting zone. The laser can improve cutting by reducing friction and providing localized heating. It is widely used in processing hard materials such as ceramics and super alloys.
Most advanced systems use LAM to manufacture superalloy components such as turbine blades with precision and efficiency.
Ultrasonic Assisted machining (UAM)
Ultrasonic-assisted machining uses ultrasonic waves to reduce the friction between the tool and the material. The reduced friction means less heat buildup, which leads to a more efficient machining process.
The aerospace industry uses 5-axis CNC machines with UAM to reduce the risk of microfractures and delamination when machining brittle ceramics or composites such as CFRP.
Adaptive Machining

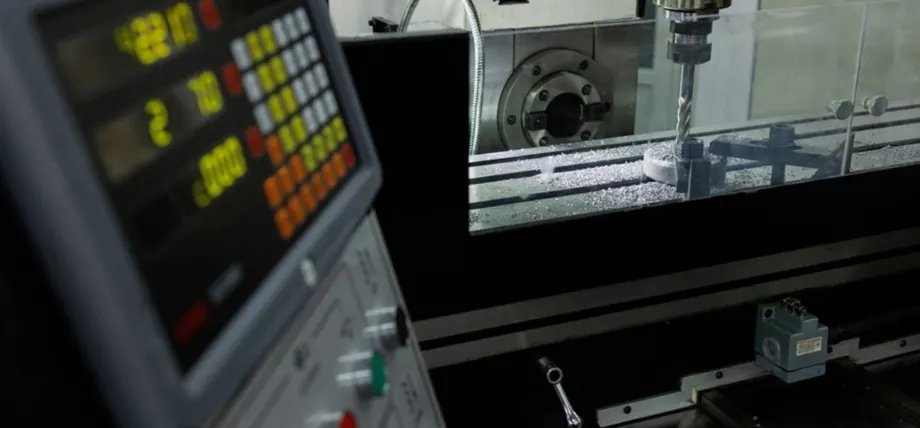

CNC controller of a large milling machine
Adaptive machining adjusts its cutting parameters by gathering real-time data using sensors. It alters tool paths and cutting speed for optimal performance.
Advanced CNC machines are integrated with AI and machine learning to adapt to a material’s optimal parameters. This ensures high quality and precision in complex parts such as medical implants.
What Are The Best Advanced CNC Machines?
Makino a500Z

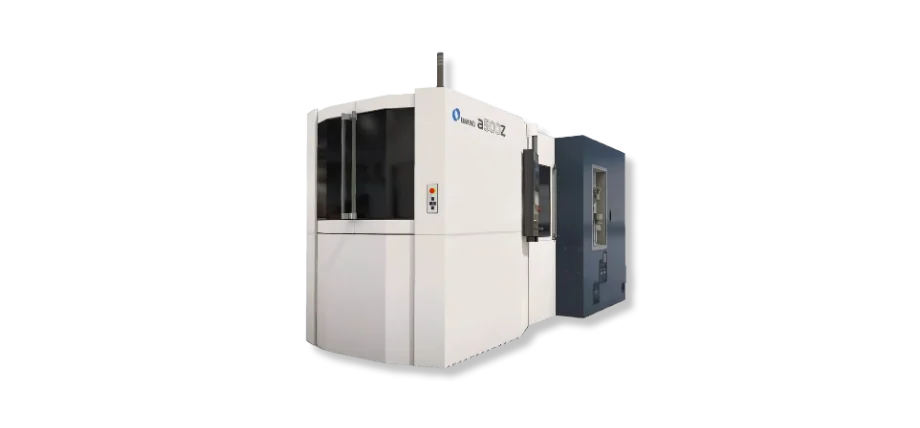

Makino z500Z
The Makino a500Z is a 5-axis CNC machine with high precision and thermal stability. It features advanced real-time monitoring systems to adjust the machining process, ensuring quality and consistency.
The automation machining capabilities of Makino A5000z feature pallet changers to boost production, which is ideal for high-precision industries.
DMG MORI NHX 5000

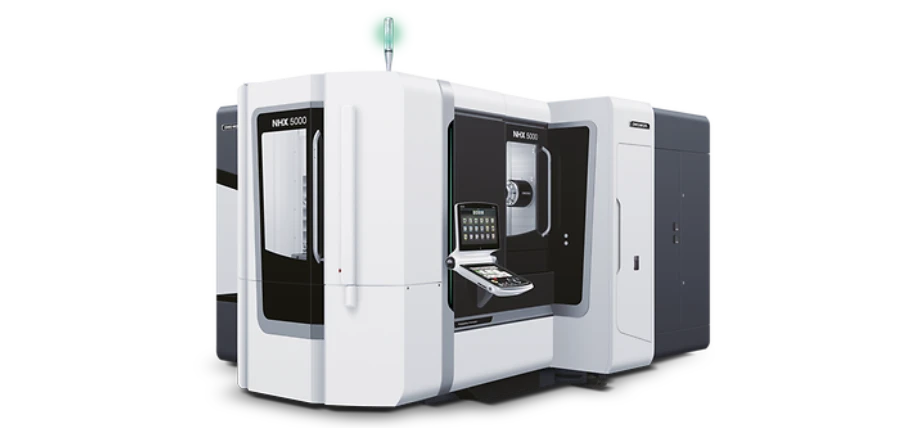

DMG MORI NHX 5000
The DMG MORI NHX 5000 is a highly versatile machining center that offers both 4-axis and 5-axis machining capabilities for a broader range of part production.
It features a CELOS control system that allows real-time adjustments. This means higher precision and efficiency for optimal performance. It is commonly used in the production of automotive components.
Mazak Integrex i-400ST

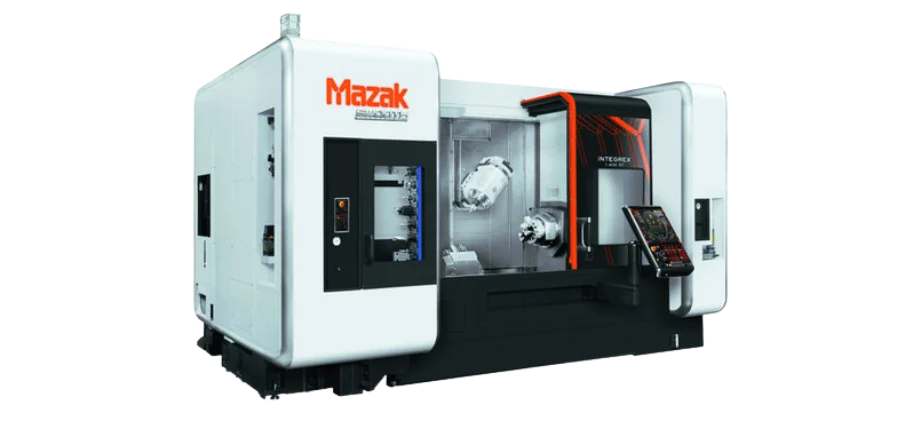

Mazak Integrex i-400STAlt: Mazak Integrex i-400ST
The Mazak Integrex i-400ST is a top-of-the-line advanced CNC machine with both turning and CNC milling capability. This means it has multiple operational capabilities.
It also has advanced twin turret and twin spindle technology that boosts efficiency and reduces the cycle times for complex geometrical parts.
It is commonly used in the aerospace and medical industries due to its high precision and broad material processing capabilities.
Haas UMC-750
The Hass UMC-750 is a medium-sized CNC machine with a 5-axis vertical machining center suitable for small shops.
It is an affordable option for small machines in the industry that need advanced CNC machining capabilities.
FANUC Robodrill Series

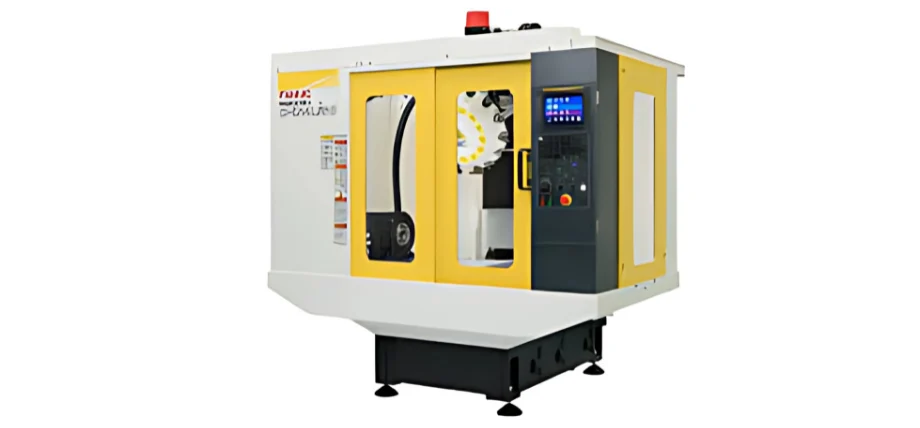

FANUC Robodrill Series
The FANUC robodrill series is a compact design CNC machine with a vertical machining center. It has high-speed and high-precision machining capabilities.
The Robodrill series is integrated with AI, which enables automations and real-time adjustments. This makes it suitable for electronic and medical device manufacturing.
Advanced Alloys and Composites
Modern industries use a variety of different materials for their high-performance components. These materials are processed through Advanced CNC machining for high precision and accuracy.
- Aluminum: Common high-strength aluminum alloys such as 6061 and 7075 are used to make high-performance parts using advanced CNC machining employing HSM. It prevents heat buildup and ensures a high-quality surface finish.
- Titanium alloys: Titanium is a high-strength metal that requires advanced CNC machines, such as Makino, to process. It is commonly used in biomedical implants and high-performance industries.
- Inconel: Inconel has high hardness and toughness, requiring specialized tools and cryogenic cooling systems for precision machining. It is used in the energy and aerospace sectors.
- Hybrid materials combine metals and composites, such as titanium-CFRP laminates. They can only be processed using advanced CNC machines with multi-material machining capabilities.
Industries Using Advanced CNC Machine Shop
Aerospace
The aerospace industry has strict tolerance and high precision requirements. The industry uses 5-axis CNC machines to achieve a tight tolerance of up to 0.0001 inches to produce parts that comply with safety and regulatory standards.
Automotive
Advanced CNC machining is used in the automotive industry to make engine components and aluminum parts such as cylinder heads. The advanced automation capabilities reduce production time and ensure consistency and quality across all components.
Medical
Most biocompatible materials, such as titanium and PEEK, have specific requirements only Advanced CNC machines can fulfill. Most implants and high-precision medical devices are made using advanced CNC machining.
Electronics
Advanced CNC machining is used to machine aluminum and titanium frames for phones. It is also used in micro-machining small and compact electronic circuits and boards.
The compact design of advanced CNC machines suits expert teams with small machine shops offering services to these sectors. It also allows custom rapid prototyping and part production at a small scale.
Advantages of Producing Parts Using Advanced CNC Machining
Advanced CNC machining has been adopted into every industry due to its numerous advantages over standard machining and other practices. Some advantages are listed below:
- Superior Precision: Advanced CNC machines can produce complex parts with 10 times higher precision than standard CNC machining. This allows the production of high-precision parts, which is crucial for the aerospace and electronics industry.
- Reduced Cycle Time: modern CNC machine 5-axis machining and automation capabilities are crucial for multitasking to reduce lead time. It also helps manufacturers deliver parts on time.
- Material Versatility: Materials adoption is a leading factor for the widespread adoption of advanced CNC machines. They can easily machine metal, such as aluminum, titanium, and composites, such as CFRP. This eliminates material limitations for manufacturers and allows them to explore and test other materials.
- Enhanced Quality Control: Advanced CNC machines use sensors to monitor the real-time machining process. This ensures the parts produced meet precise quality standards.
- Cost Efficiency: The multi-axis capability removes the need for multiple setups. This simplifies the process by reducing setup time and machining costs as steps are reduced.
CNC Machining Services
PROLEANMFG provides high-precision CNC machining services for metals and plastics. Our 5-axis machining capabilities provide advanced workpiece handling and reduce machining steps, which provide better lead times.
Request a quick quote for free today!
Conclusion
Advanced CNC machining has experienced widespread adoption in various industries, ranging from electronics to the energy sector. This is mainly due to the advanced capabilities of the 5-axis machining and automation in the manufacturing process.
Leading CNC machines such as Makino, Haas, and Mazak enhanced the production machine capabilities and revolutionized the industry by raising the industry standards.
Companies that explore and invest in these technologies are partnering with certified machine shops to gain a competitive advantage in precision manufacturing..
FAQ
What Are The Latest Advancements In CNC Machining Technology?
The latest advancement is the integration of AI and machine learning in CNC systems to automate the process. Hybrid manufacturing is also a new development that allows multi-operation tasks, such as combining subtractive and additive manufacturing, to enhance production.
What are the recent developments and advancements in CNC machines?
The recent developments in the CNC machine sector are the development of 5-axis and 6-axis machines, such as Makino D200Z. It has improved stability and thermal conductivity, which increases material options and streamlines production.
